KSHATRA M165 VTOL
Heavy-payload hybrid VTOL for cargo and defense logistics
Image Gallery
Technical Overview

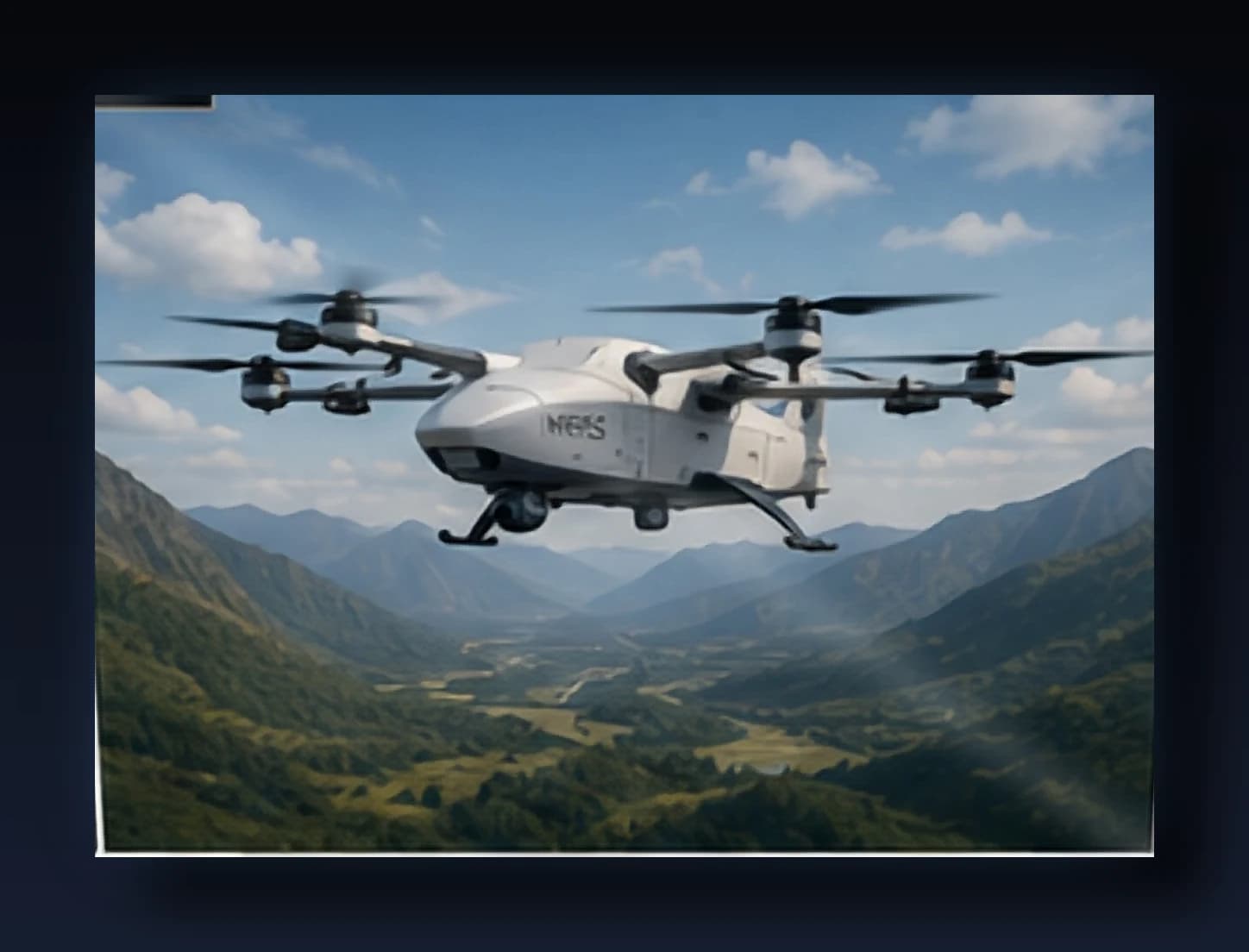

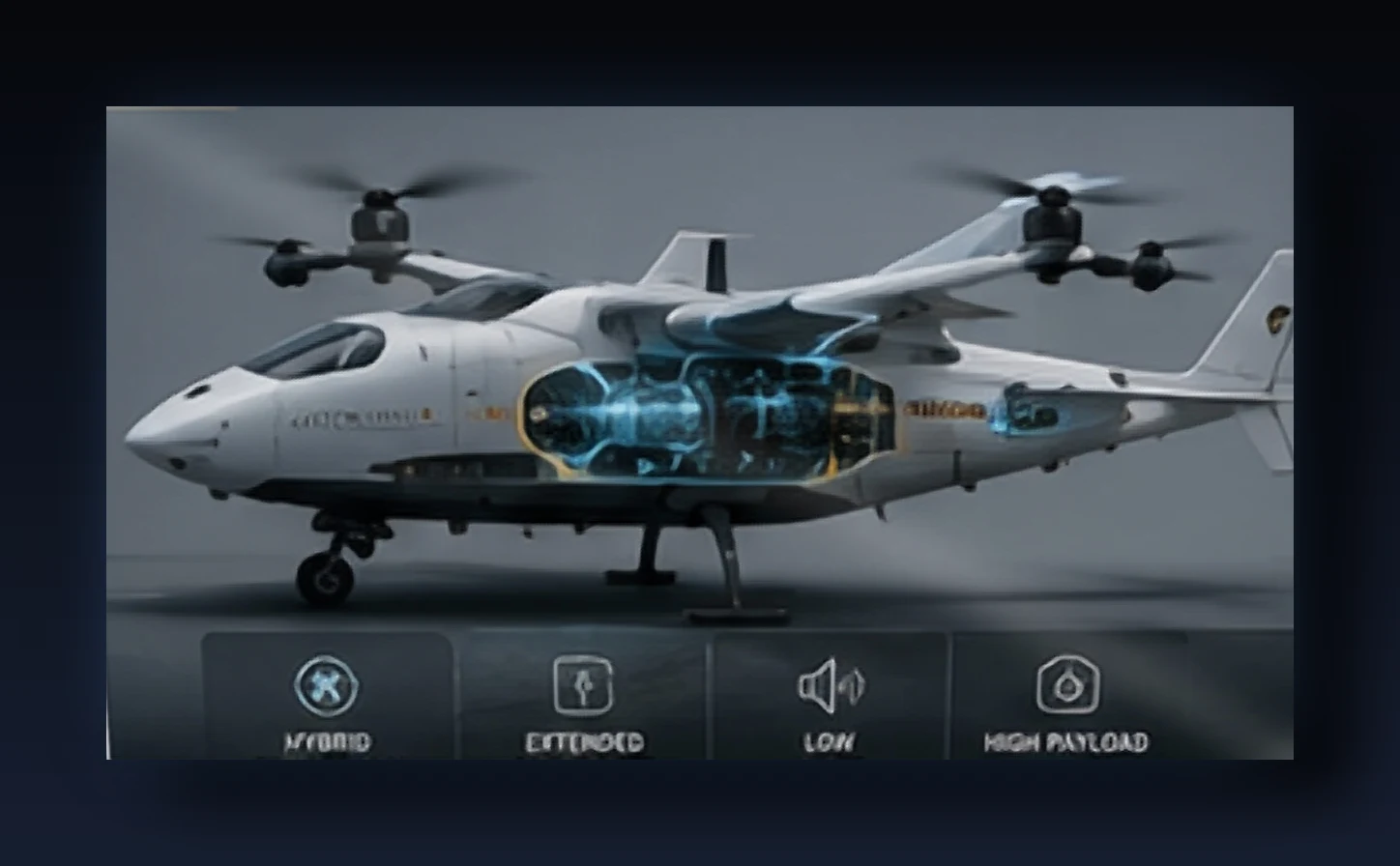

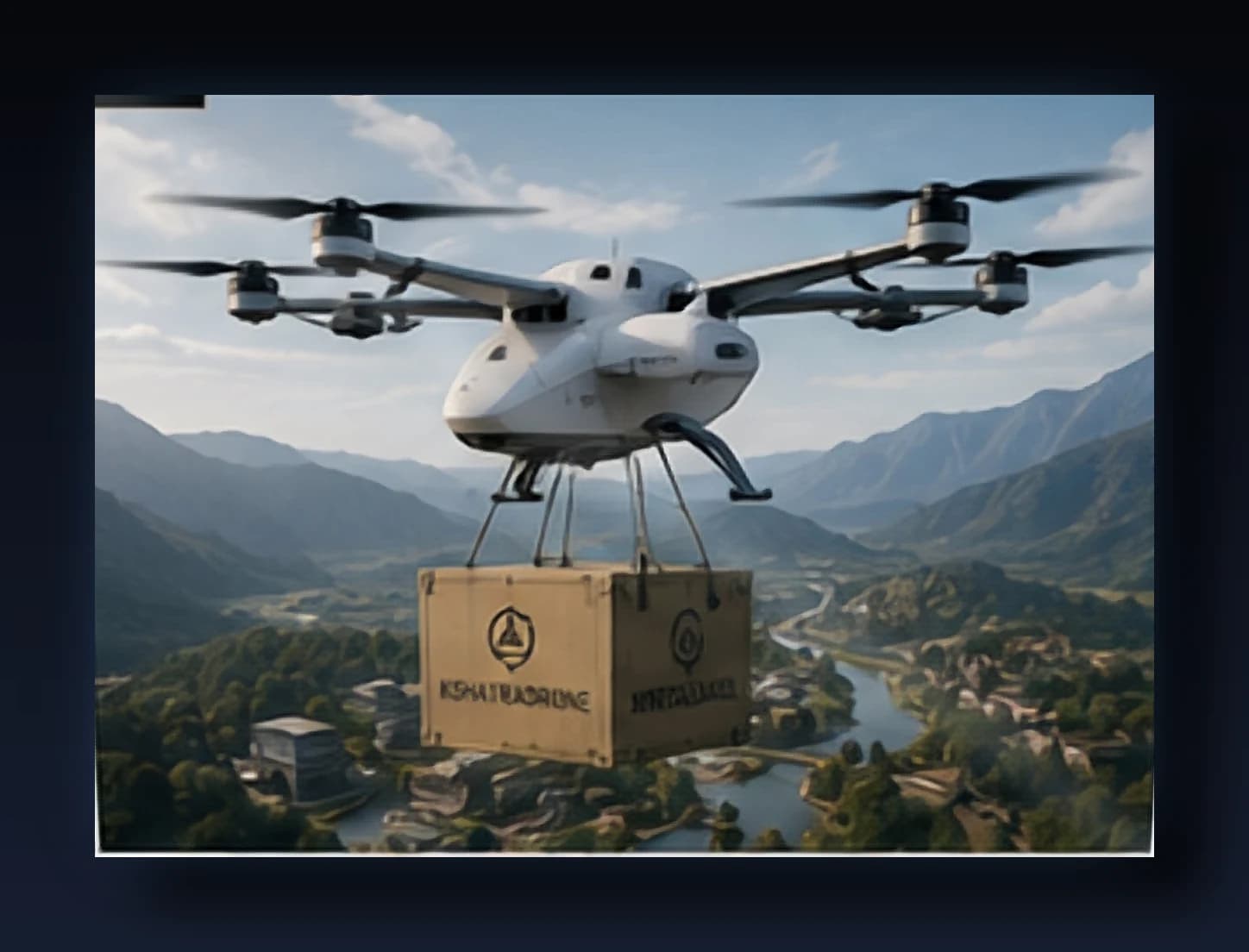

The KSHATRA M165 VTOL is a large-scale hybrid-electric UAV: an IC engine drives efficient forward flight while eight coaxial lift motors handle vertical take-off and landing. The airframe is sized for 100 small ISO-standard packages and tuned to minimize fuel consumption for cost-effective operating rates, making it well suited to defense logistics, industrial cargo and humanitarian-aid missions.
Specifications
| Wingspan / Length / Height | 4.5 m / 3.4 m / 1.1 m |
|---|---|
| Forward propulsion | 29 hp IC engine |
| Vertical propulsion | 8 coaxial motors with propellers |
| Indigenous content | 62% |
| Empty / Gross weight | 110 kg / 150 kg |
| Max payload | 30 kg |
| Max fuel capacity | 30 L |
| Cruise / Max speed | 100 km/h / 135 km/h |
| Max range | 300 km |
| Max operating altitude | 5,000 m (MSL) |
| Note | Specifications subject to change without notice — source: authorized-partner datasheet. |
Mission Applications
- ▸Defense Logistics
- ▸Industrial Cargo
- ▸Humanitarian Aid
